Commercial-Grade Steel
Hollow Metal
Doors &
Frames
Commercial-grade hollow metal doors & frames engineered for performance, fire safety, and fast delivery. One source — every specification.
Why Choose Imperial for Hollow Metal Doors and Frames
Precision-built hollow metal doors & frames — stocked in our Charlotte warehouse and shipped within 1–2 business days.
- CNC flexible manufacturing
- Automatic Painting Line
- Digital Bending & Punching
- Robotic Welding
- Bespoke Size & Design Freedom
- Fabrication Stability & Quality
Shop by Door Type
Select the door configuration that fits your opening. Every type is available in standard or custom sizes with full hardware prep options.Select the door configuration that fits your opening. Every type is available in standard or custom sizes with full hardware prep options.
Flush Doors
Standard smooth-face hollow metal doors. Available in 16 & 18 gauge with polystyrene, honeycomb, or fiber core options.
View Flush Doors → High TrafficContinuous Prep Doors
Factory-prepped for continuous hinges and concealed closers. Ideal for high-traffic commercial corridors and egress paths.
View Continuous Prep → ArchitecturalTwo Panel Doors
Two-panel profile design for offices, schools, and commercial spaces requiring a defined aesthetic with full steel performance.
View Two Panel Doors → Decorative6 Panel Doors
Classic six-panel steel door with the look of traditional wood construction. Paintable and fire-rated available.
View 6 Panel Doors →Products Overview
Imperial supplies commercial steel doors and hollow metal door frames to contractors and distributors in all 50 states. Doors and steel door frames are stocked in Charlotte, NC in the hinge locations below, with custom sizes made to order.

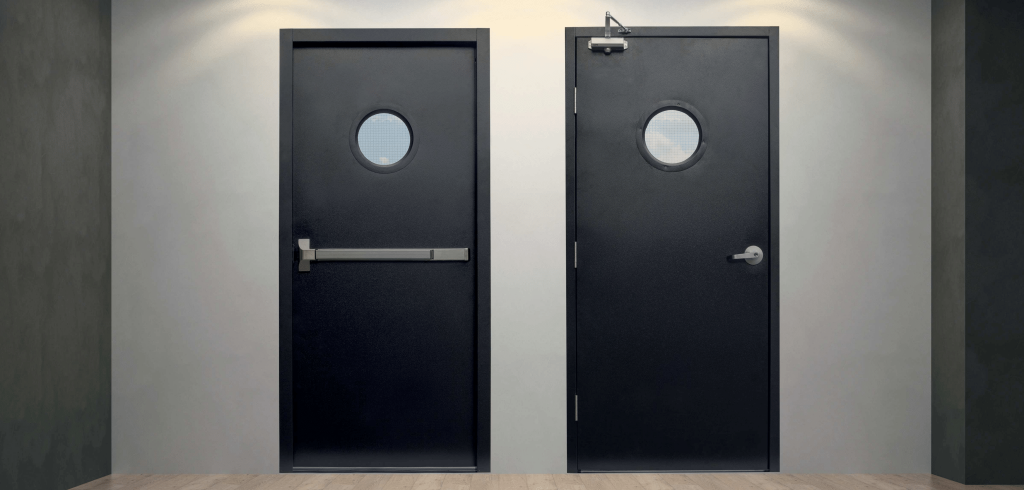

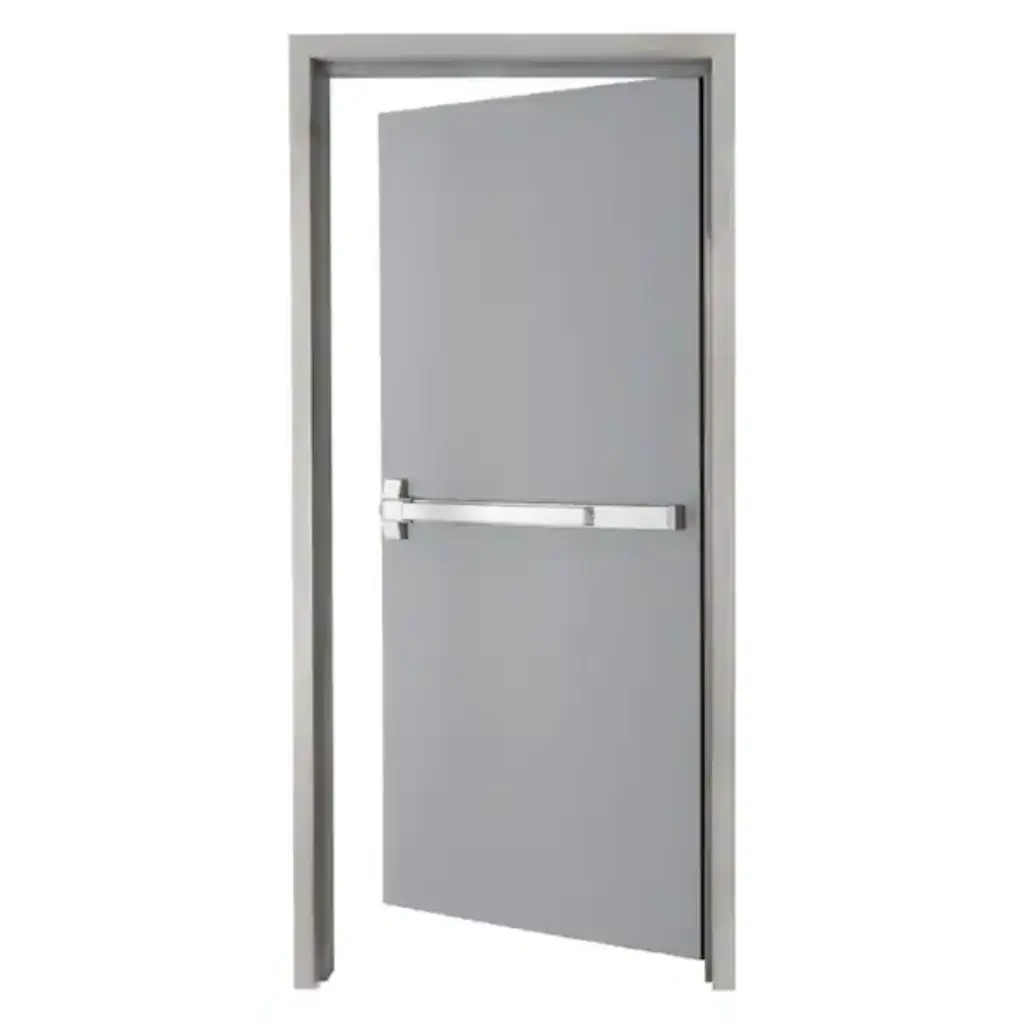

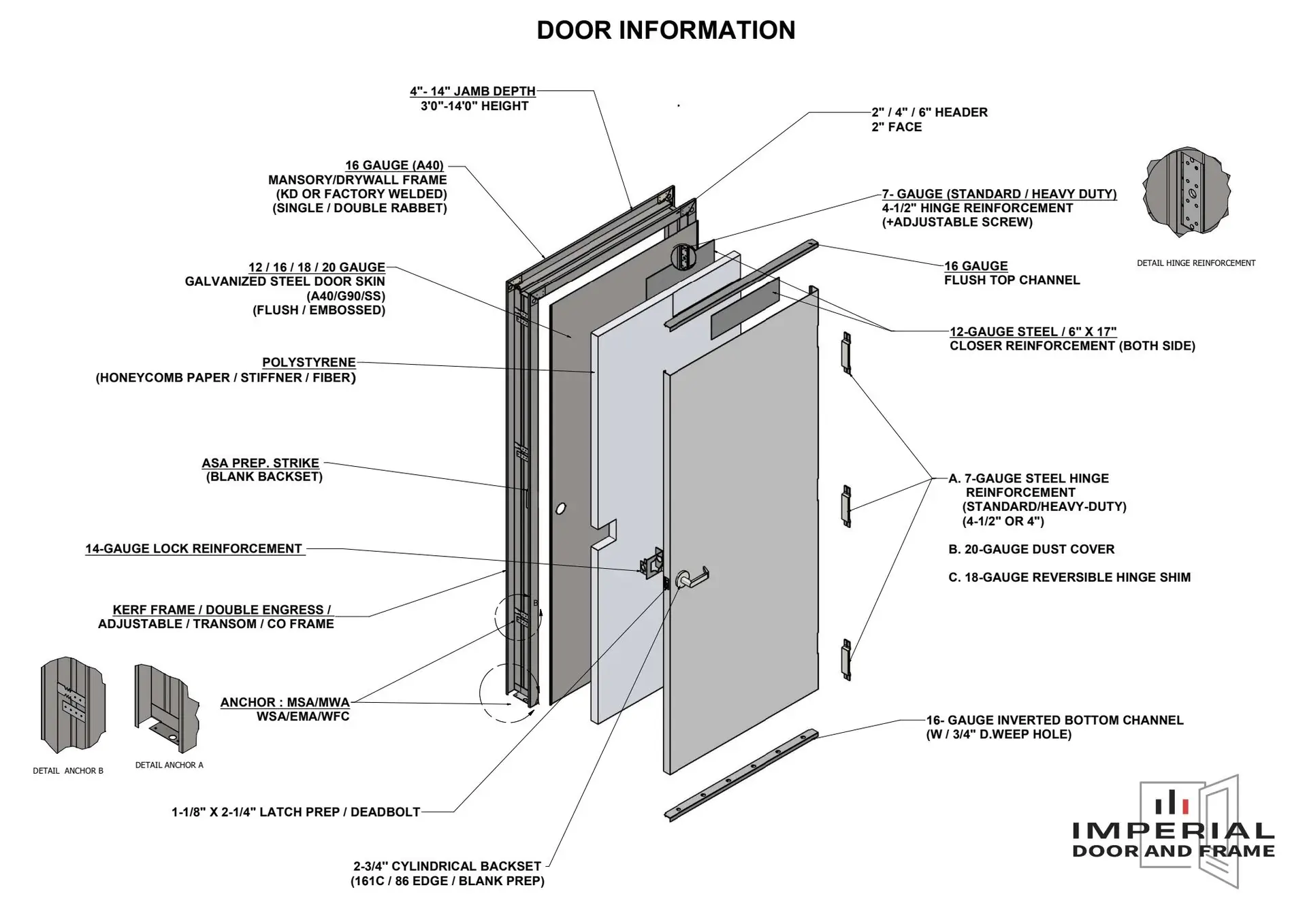

Hollow Metal Doors
16 & 18 gauge galvanized steel (A40/G90)
Polystyrene core standard; honeycomb, stiffener, fiber available
Seamless / interlocking welded construction
3-hour WHI fire rating — UL 10C / NFPA 252
Universal hardware reinforcements (7-ga hinge, 14-ga lock)
Prime painted with baked-on resin finish
Stainless steel optional
Max size: 4′-0″ W × 8′-0″ H
Stocking Hinge Locations
Steelcraft (SC)
Curries (CU)
Mesker (ME)
Pioneer (PI)
Ceco (CE)
See Exactly What's on the Shelf
The Hollow Metal Stock Matrix lists every door and frame we stock in Charlotte, by manufacturer hinge location and size.
Ready to Price Your Next Project?
Submit your door schedule or opening details and our team will come back with pricing fast — usually same day.

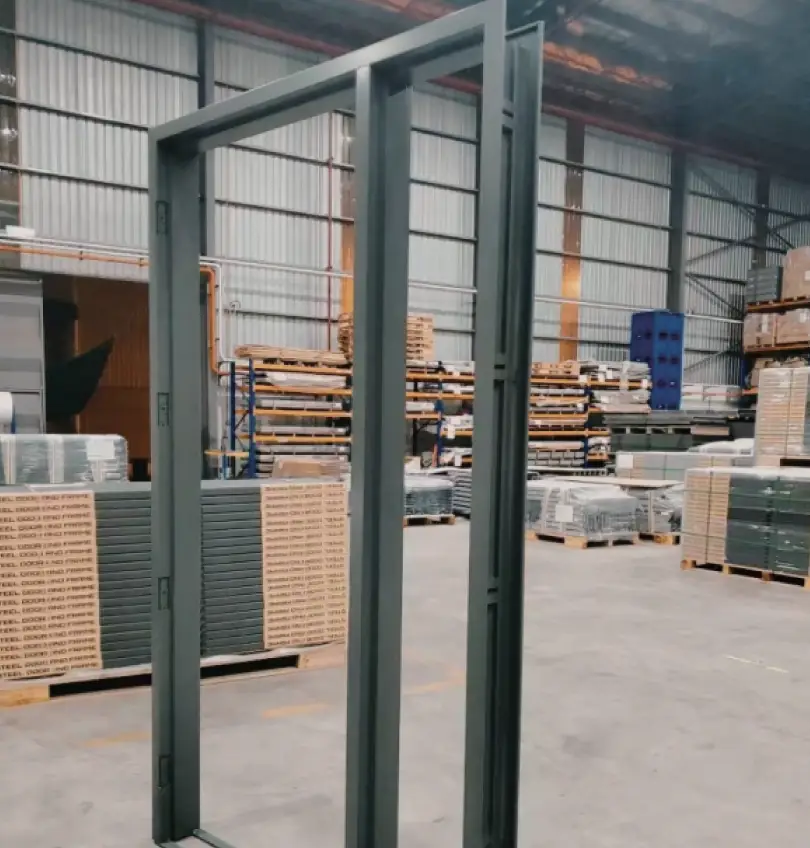

Hollow Metal & Steel Door Frames
12/14/16-gauge galvanized A40 steel — break-formed to spec
KD (knock-down) or factory welded (laser face welded available)
Masonry & drywall configurations
Single or double rabbet
Steel door jamb depth: 4″ to 14″, heights 3′-0″ to 14′-0″
2″ / 4″ / 6″ headers with 2″ face
Compression anchors (drywall) / MSA-MWA wire anchors (masonry)
Mitered corners with 4-tab interlocking system
Countersunk hole drywall anchors, welded sill anchors
7-ga hinge reinf., 14-ga lock reinf., closer reinf. both sides
18-ga reversible hinge shim, 20-ga dust cover
Inverted bottom channel with 3/4″ weep holes
Shop by Frame Type
Choose the right frame for your wall construction and opening requirements. Custom jamb depths, heights, and configurations available.
Drywall Frames
Knock-down (KD) and factory-welded frames for wood stud and metal stud drywall applications. Compression anchors standard. Masonry & drywall configurations available.
View Drywall Frames → Masonry WallsMasonry Frames
Built for CMU and brick applications with MSA-MWA wire anchors. Available in welded or KD configurations with mitered corners and interlocking tab system.
View Masonry Frames → Egress PathsDouble Egress Frames
Paired frames for corridor egress openings where code requires traffic flow in both directions. Double rabbet with center mullion or open-section configurations.
View Double Egress →Custom Fabrication & Components
Beyond standard sizes, Imperial manufactures custom doors and frames to your exact specifications. Welded frames, specialty preps, and factory-installed components — ready to ship.
Custom Size Doors & Frames
Any profile, any dimension within manufacturing range.
Welded Frames
Laser face welded and continuous welded — ground smooth.

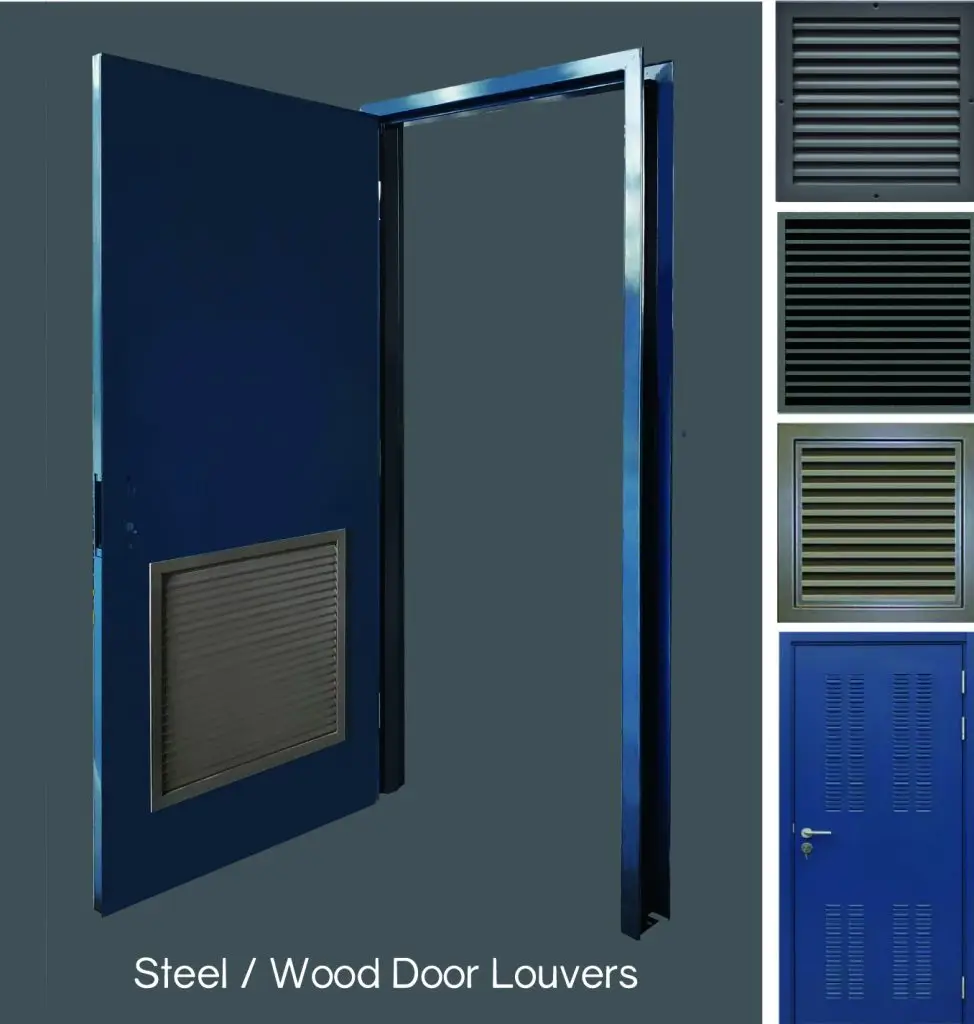

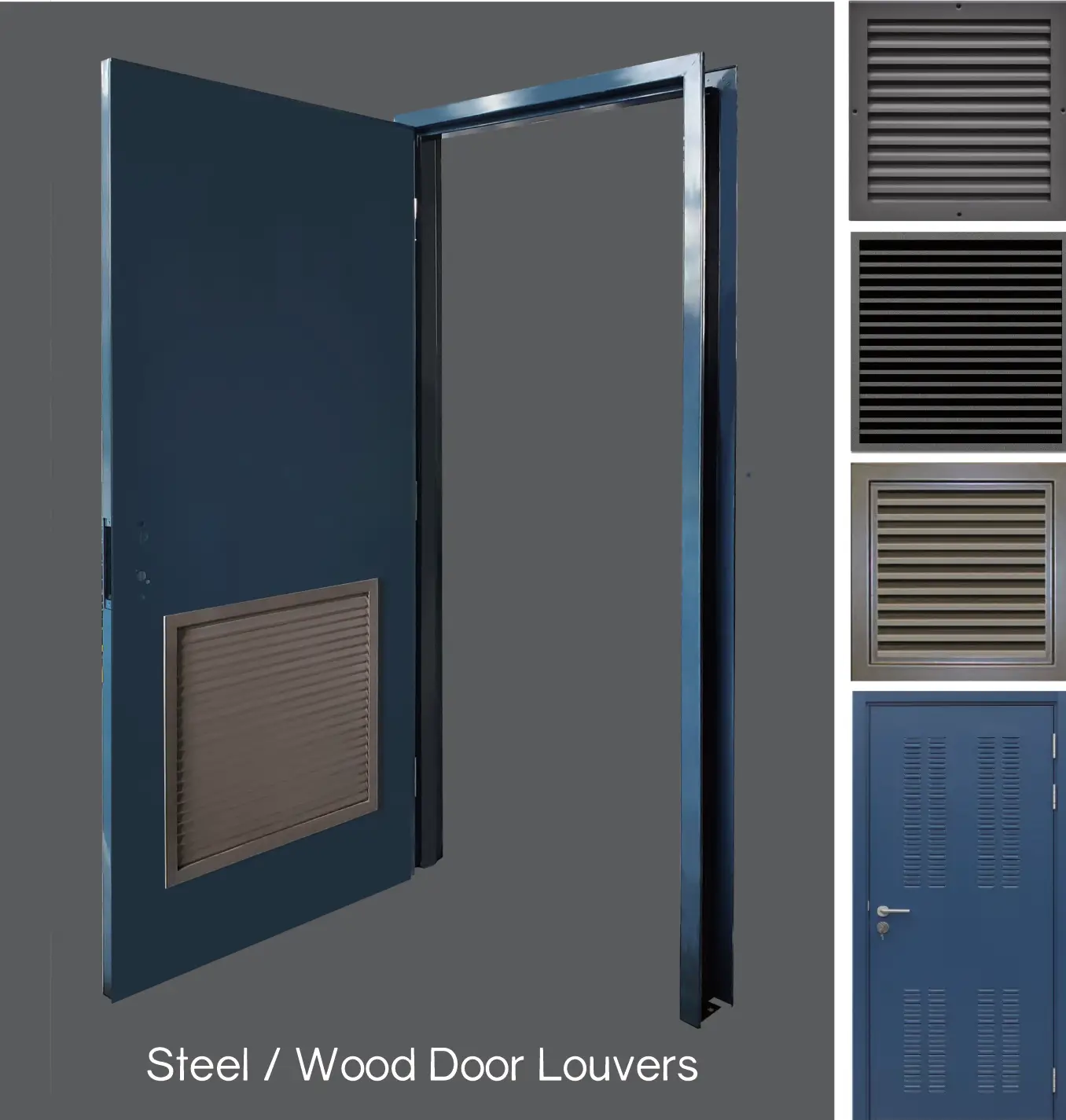

Steel Louvers
18-ga blade thickness. Inside/outside mounting. Order size = cutout minus 5/32″.

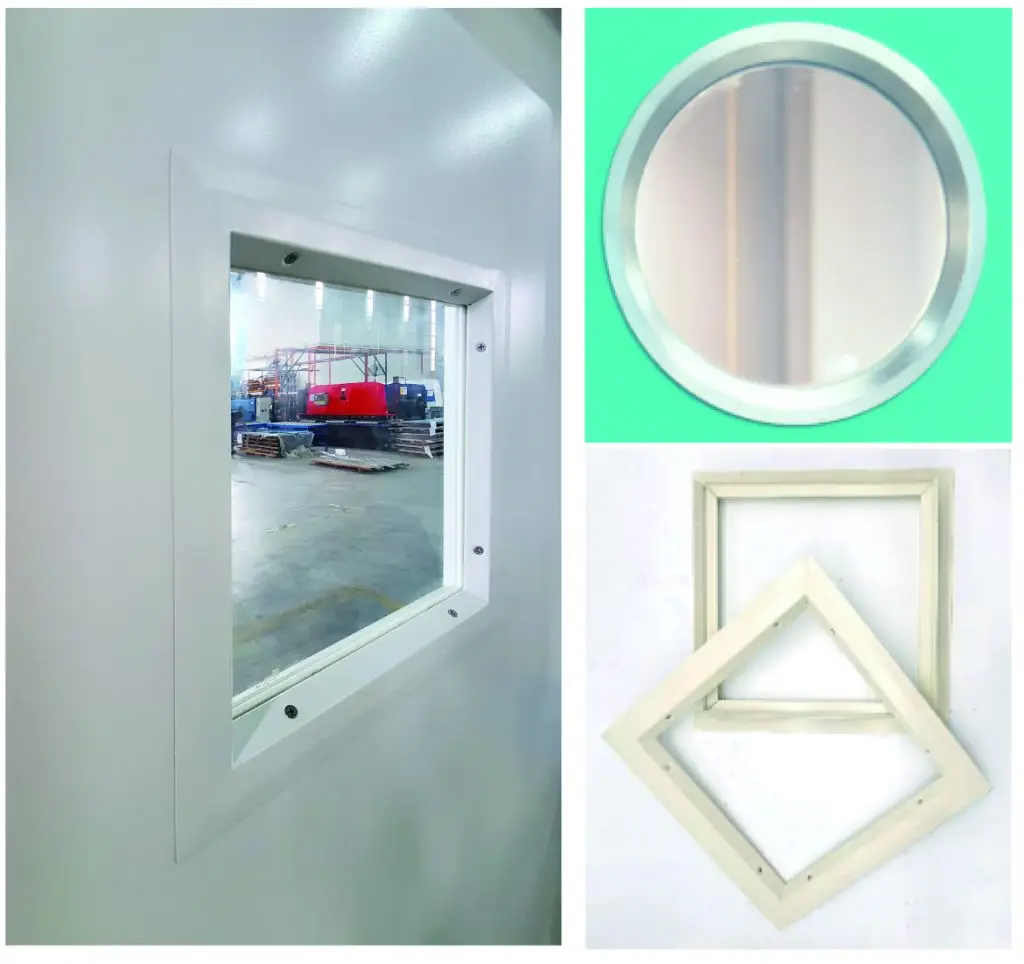

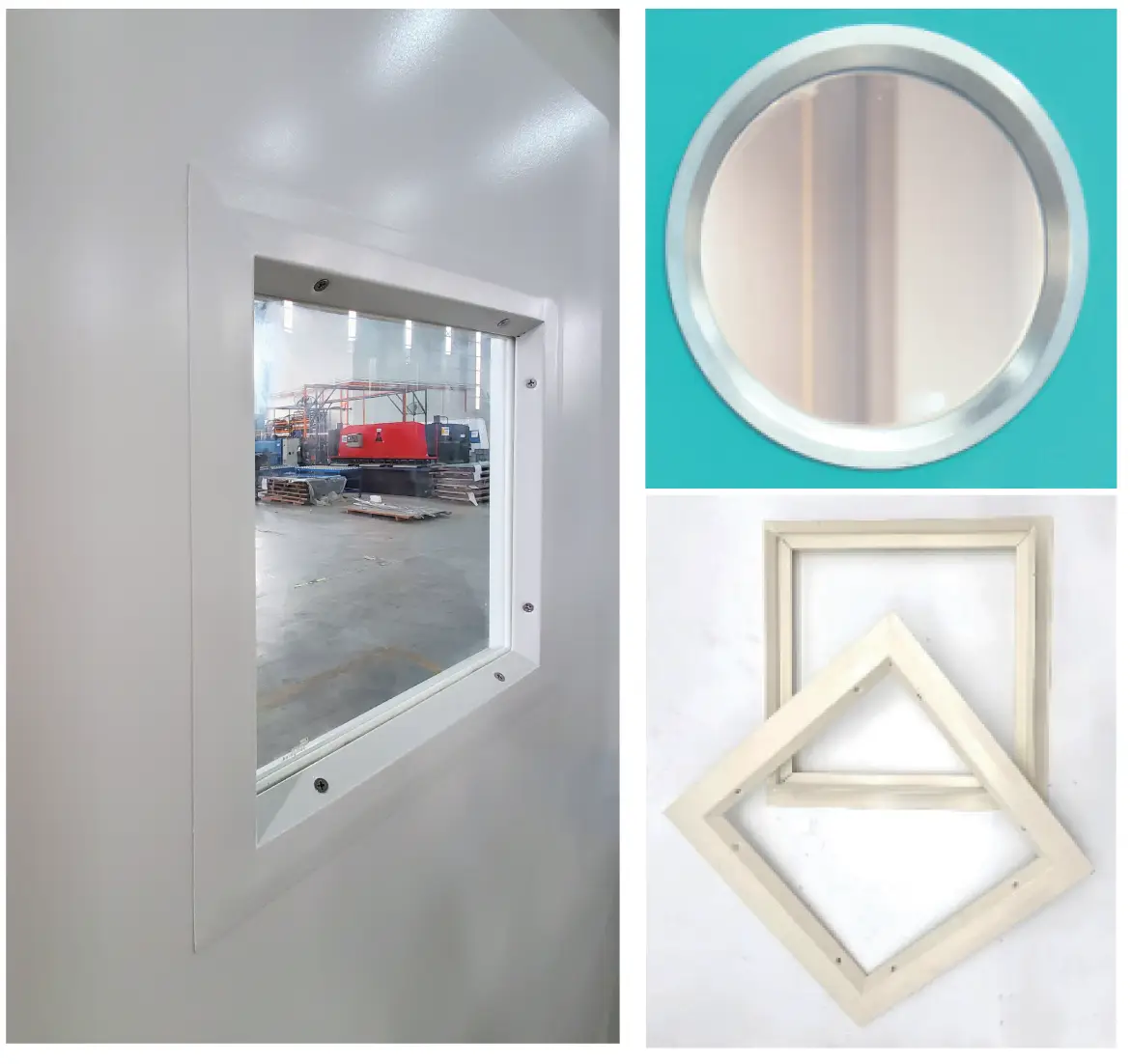

Vision Lite Kits
Tempered glass kits with inside/outside frames. Visible lite = overall size minus 2″.
Edge & Channel Components
Lock seam edge, inverted bottom channels, adjustable screws, reversible hinge shims.
Reinforcements
7-ga hinge (4-1/2″ or 4″), 14-ga lock, closer reinf. both sides, blank brackets.
Some items are special order only — contact us for availability and lead times.
Fabrication & Technology
Advanced CNC manufacturing, robotic welding, and automatic finishing systems deliver consistent quality and design freedom across every product.

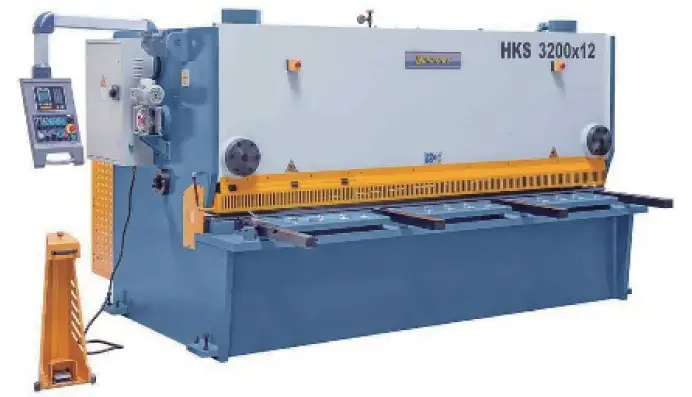

Guillotine Shearing
Precision sheet cutting for consistent panel sizing

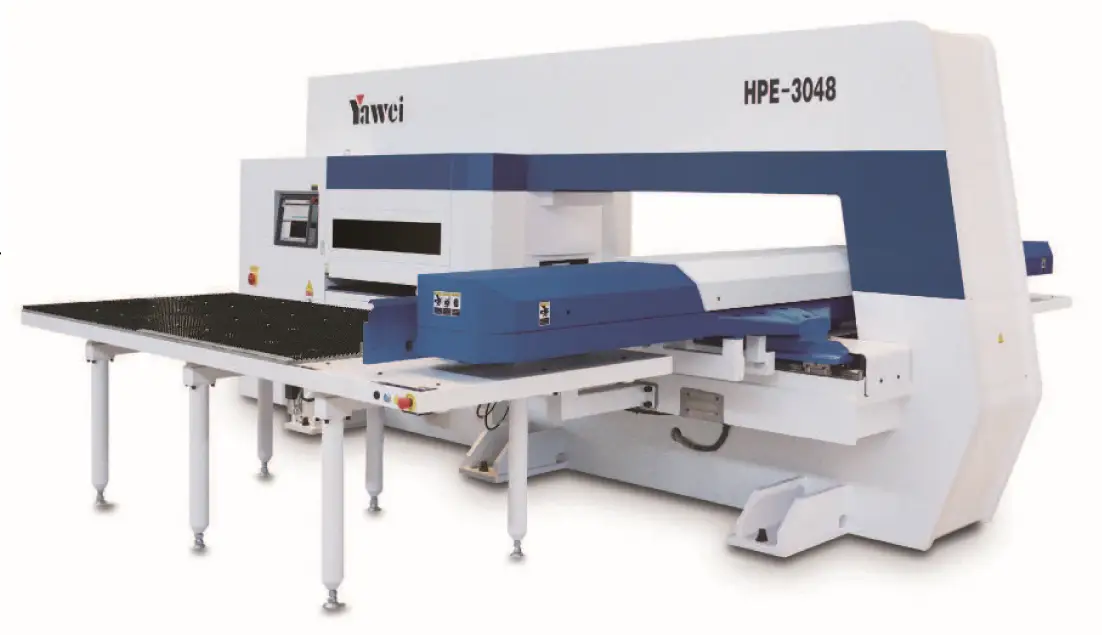

CNC Punch
Computer-controlled punching for accurate hardware prep and cutouts.

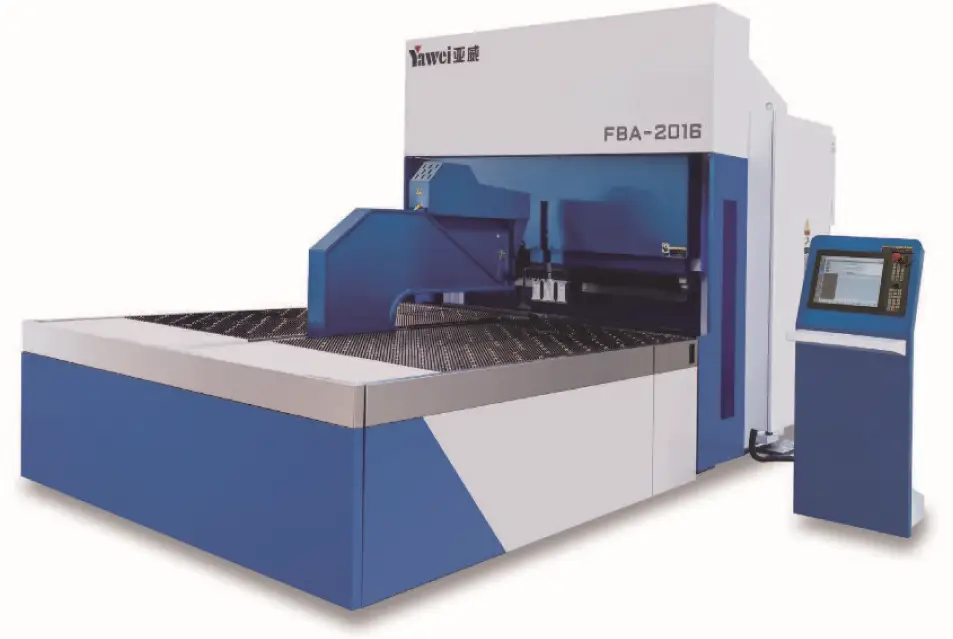

Automatic Panel Bender
Digital bending for fabrication stability, consistent angles, and quality.

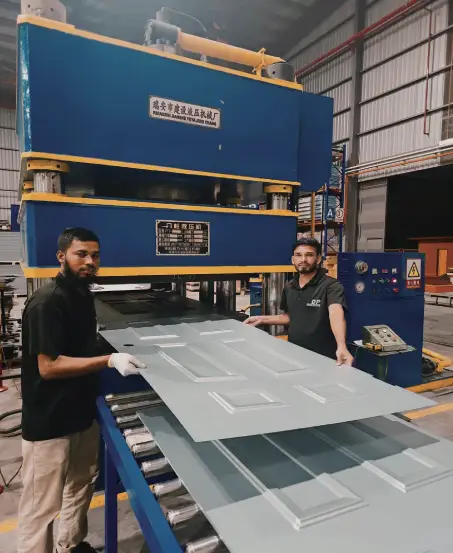

Embossing
Surface texturing and profile creation for aesthetic and structural enhancement.

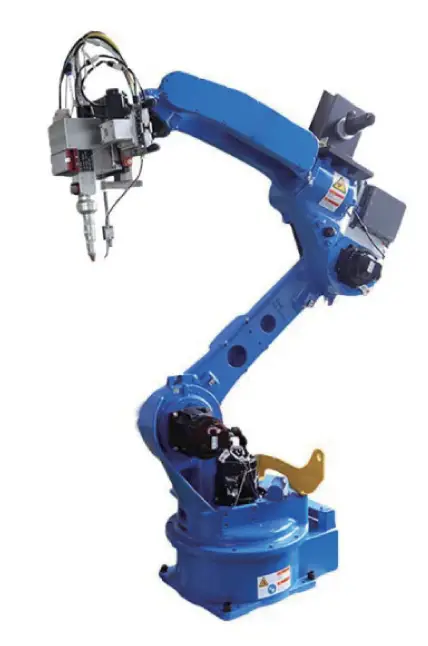

Laser Welding
Seamless face-welded and continuous-welded construction for structural integrity.

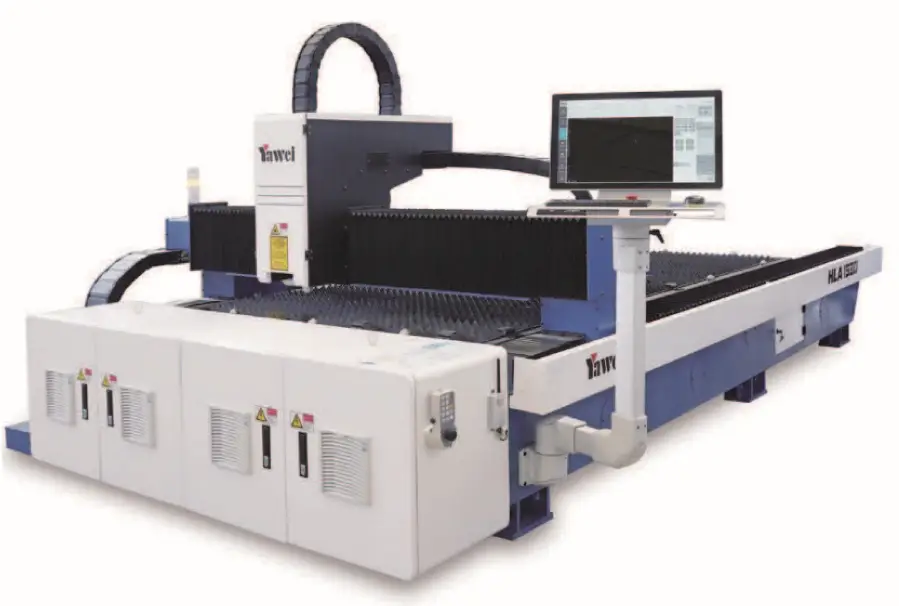

Laser Cutting
Precision cutting for bespoke sizes, custom profiles, and design freedom.

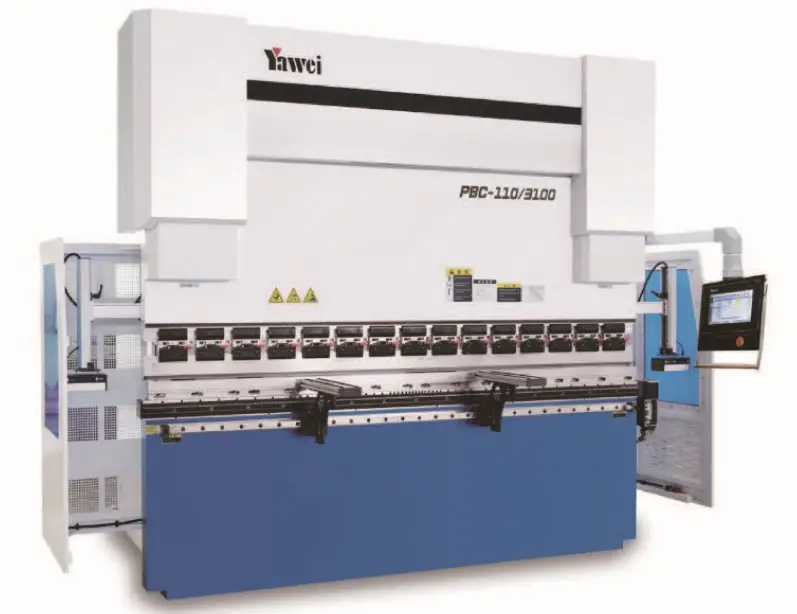

CNC Press Brake
Digital bending and forming for frame profiles and custom components.
Powder Coating & Painting Line
Automatic factory-applied finish. Water-based, oil-based, or powder coat in all RAL colors.
Handing, Finishes & Certifications

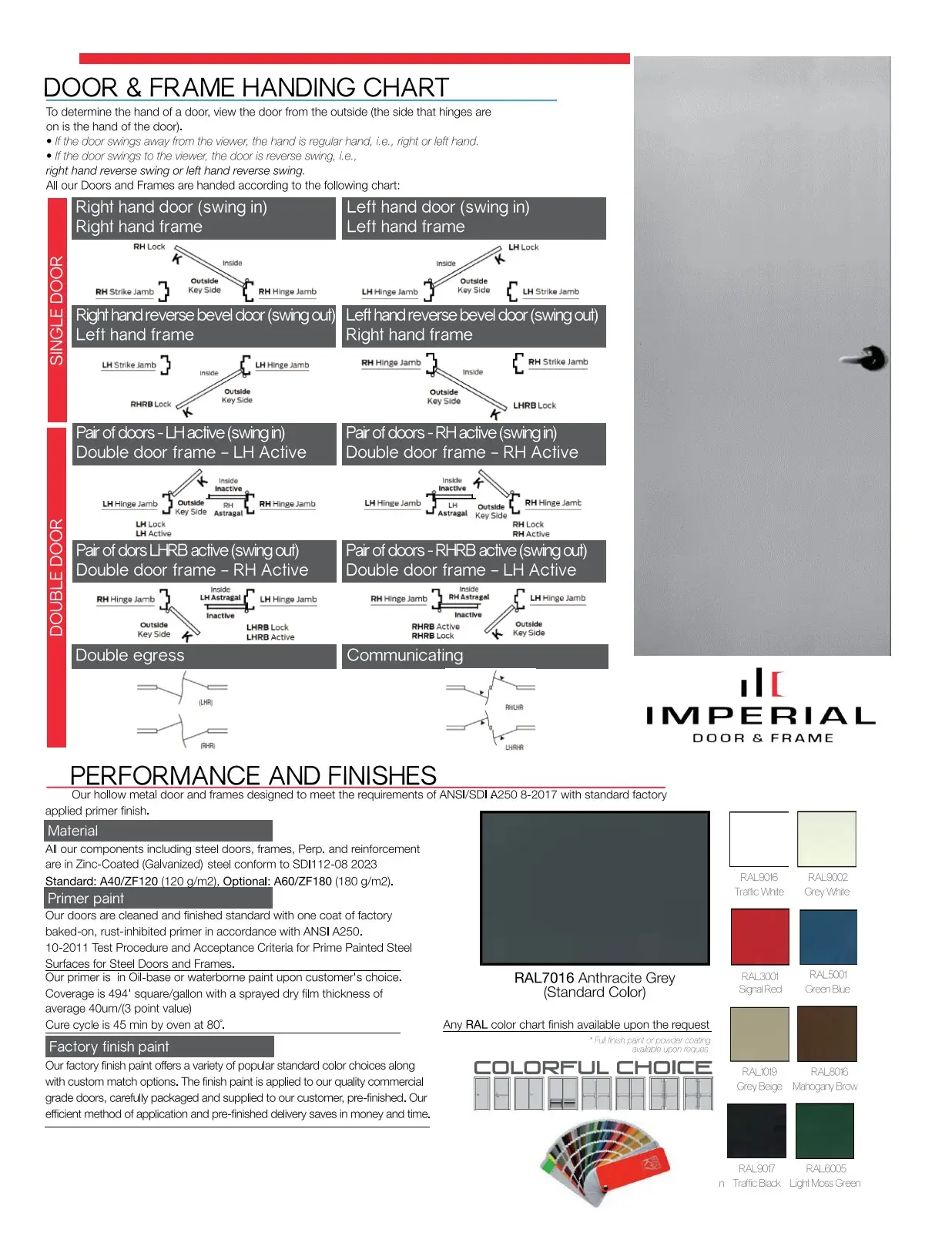

Door Handing Configurations
Single Doors
RH (Right Hand) and LH (Left Hand) configurations with lock and strike jamb identification from hinge side.
Double Doors (Pairs)
Equal and unequal pairs with RHRB and LHRB active leaf designations and inactive leaf identification.
Double Egress
Opposing-swing door pairs for corridor and egress path applications where code requires traffic flow in both directions.
Communicating Openings
Side-by-side door configurations with RH and LH astragal designations for connecting rooms.
Performance & Finishes
Water-based or oil-based color painting
Color powder coating available
Durable, flow-coated, baked-on finish
Primer paint, full finish paint, or powder coat
All RAL color charts supported
Custom color matching upon request

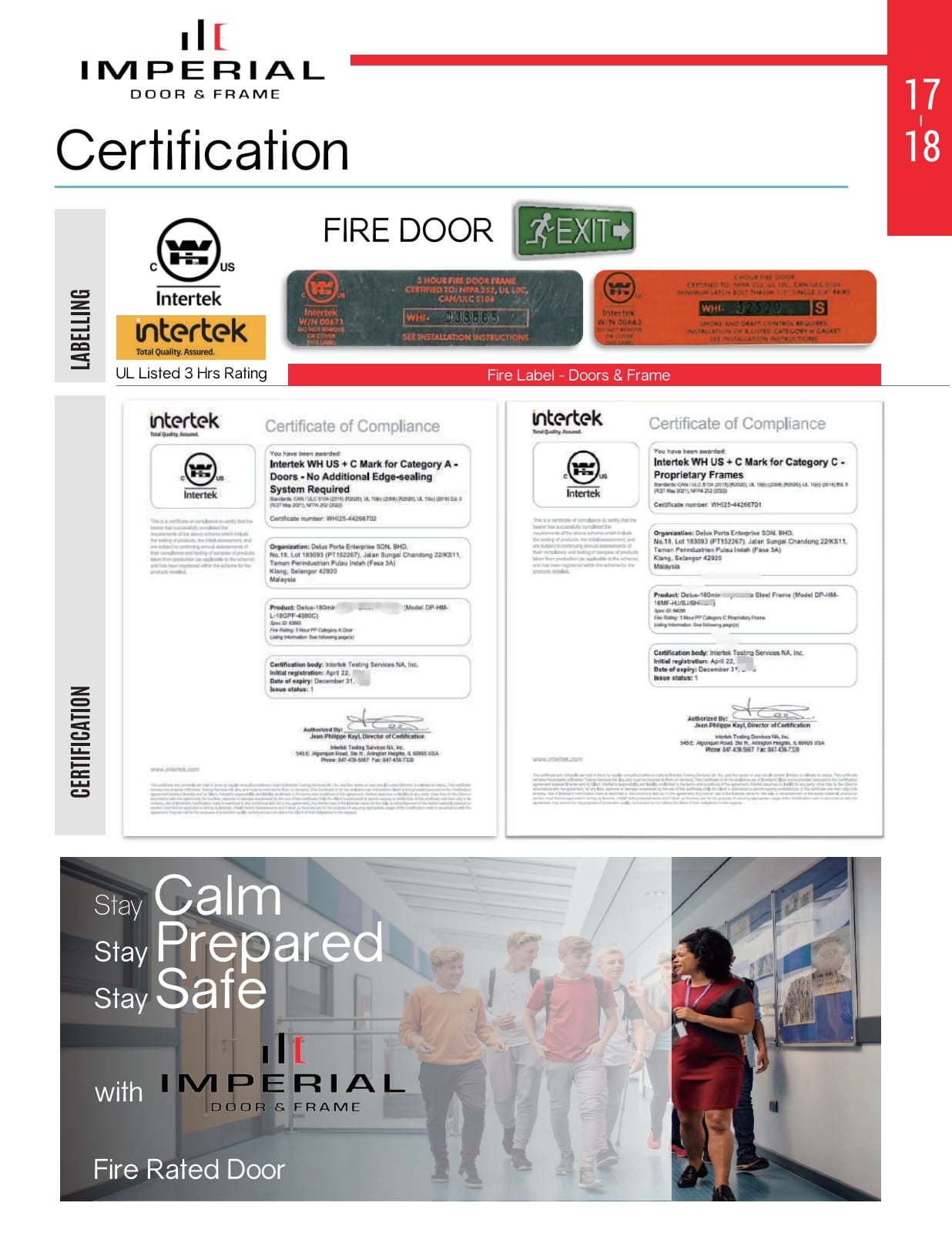

Fire Rating & Certification
3-hour fire rated (WHI) — positive pressure
Certified to NFPA 252 and UL 10C
Intertek WH US + C Mark — Category A (Doors)
Category C — Proprietary Frames
Smoke and draft control rating with listed gasket
All frame components comply with ANSI A250.8 (R2008)
Fire labeling by WHI (Intertek)
Installation per ANSI A250.11 – 2001
Frequently Asked Questions
What is a hollow metal door frame?
A hollow metal door frame is a steel frame formed from sheet steel to wrap the wall opening and carry the door. Imperial frames are 16 gauge A40 galvannealed steel, with 12 and 14 gauge available, in masonry and drywall profiles.
Should I order a knock-down or a welded frame?
Knock-down (KD) frames ship as two jambs and a header and assemble on site, which keeps freight compact. Welded frames ship set up and ready to install. We stock both, including pre-welded 3/0 x 7/0 masonry frames.
What is the difference between masonry and drywall frames?
Masonry frames are set as the block wall goes up and are held with strap anchors. They are fire rated up to 3 hours. Drywall frames wrap a finished stud wall, install after the drywall with compression anchors, and are rated up to 90 minutes.
How do I choose the right jamb depth?
Jamb depth is the overall width of the frame. The throat is the wall thickness it covers. A 5-3/4" masonry jamb, for example, has a 4-7/8" throat. Stock masonry depths run from 5-3/4" to 8-3/4".
Which manufacturer hinge locations do you stock?
Steelcraft, Ceco, Curries, Mesker and Pioneer. The Hollow Metal Stock Matrix shows which sizes are in stock for each one.
Are your hollow metal doors fire rated?
Yes. Doors are rated up to 3 hours, tested to UL 10C and NFPA 252, and labeled by Intertek (WHI).
